Description
2×2 Video Wall Controller Pro2
Full HD 2×2 Wall Controller with Mixed Inputs
FEATURES
- Support USB/VGA/Composite/HDMI input.
- Select 1 of 4 source and distribute to 4 displays.
- Create a 2×2 Video Wall Controller from any source tofour displays.
- Support multi-level cascading to create 3×3, 4×4…Video Wall (Max 10×10). d
- Supports 180° rotation.
- Also Supports resolution up to 1080p Full HD.
- Ultimate Support Panel control, IR control, RS232 control.
SPECIFICATIONS
| Operating Temperature Range | 0 to +35°C (32 to +95°F) |
| Operating Humidity Range | 5 to 90 % RH (no condensation) |
| Input Video Signal | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Video Format Supported | DTV/HDTV: 1080P/1080i/720P/ 576P/480P/576i/480i |
| Audio Format Supported | LPCM |
| Input ports | 1xHDMI, 1xUSB, 1xVGA, 1xAV |
| Output ports | 4xHDMI |
| Splitter mode | 1×4 HDMI Splitter |
| Video wall mode | 2×2,3×3,4×4……10×10 video wall |
| Control Way | Panel control, IR control, RS232 control |
| Power consumption | 15watts(Maximun) |
| Dimension (mm) | L380.6XW136.6XH43.5 mm |
| Weight | 1725g |

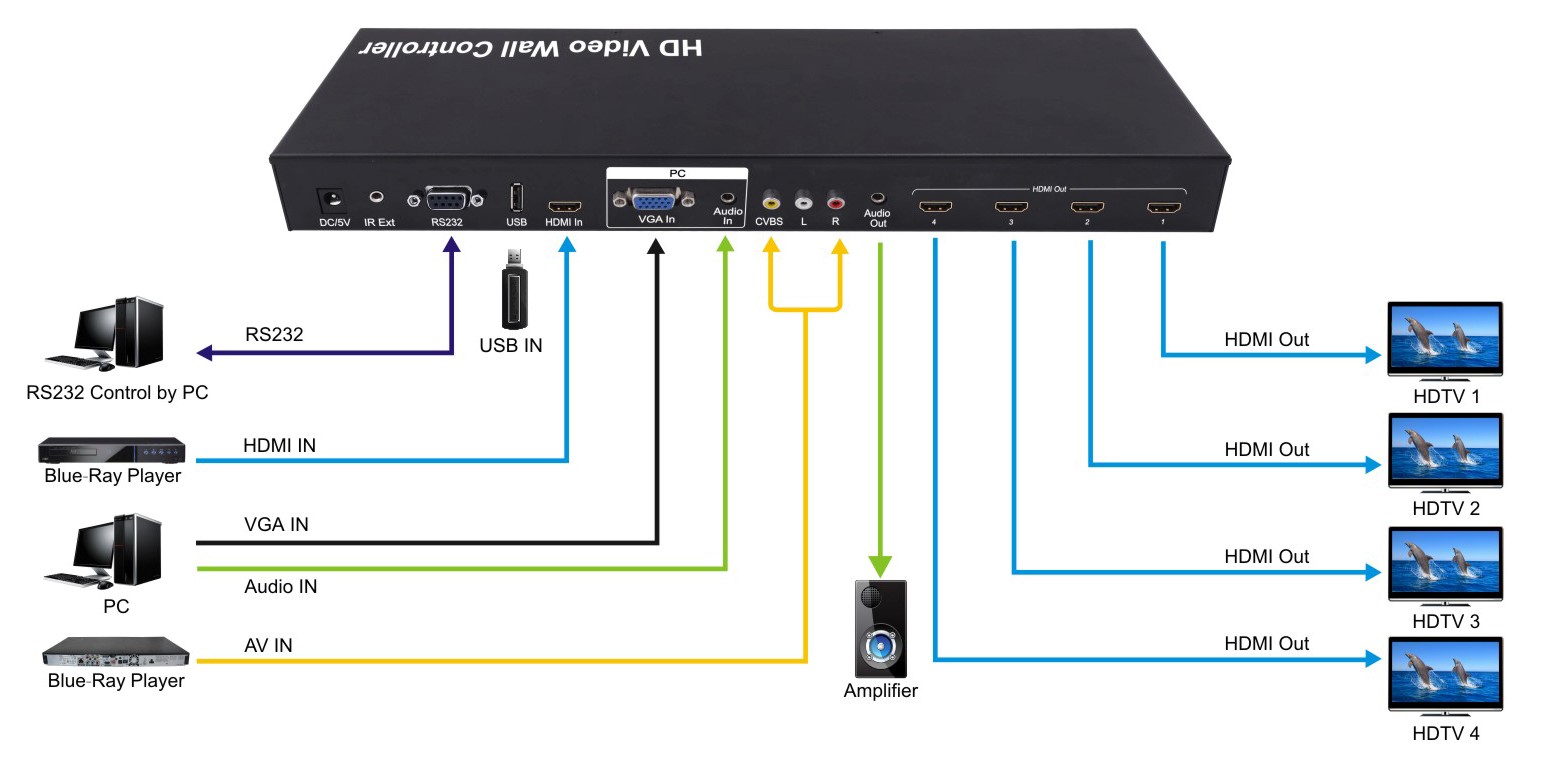

Split A Single Source To 4 Video Wall Displays

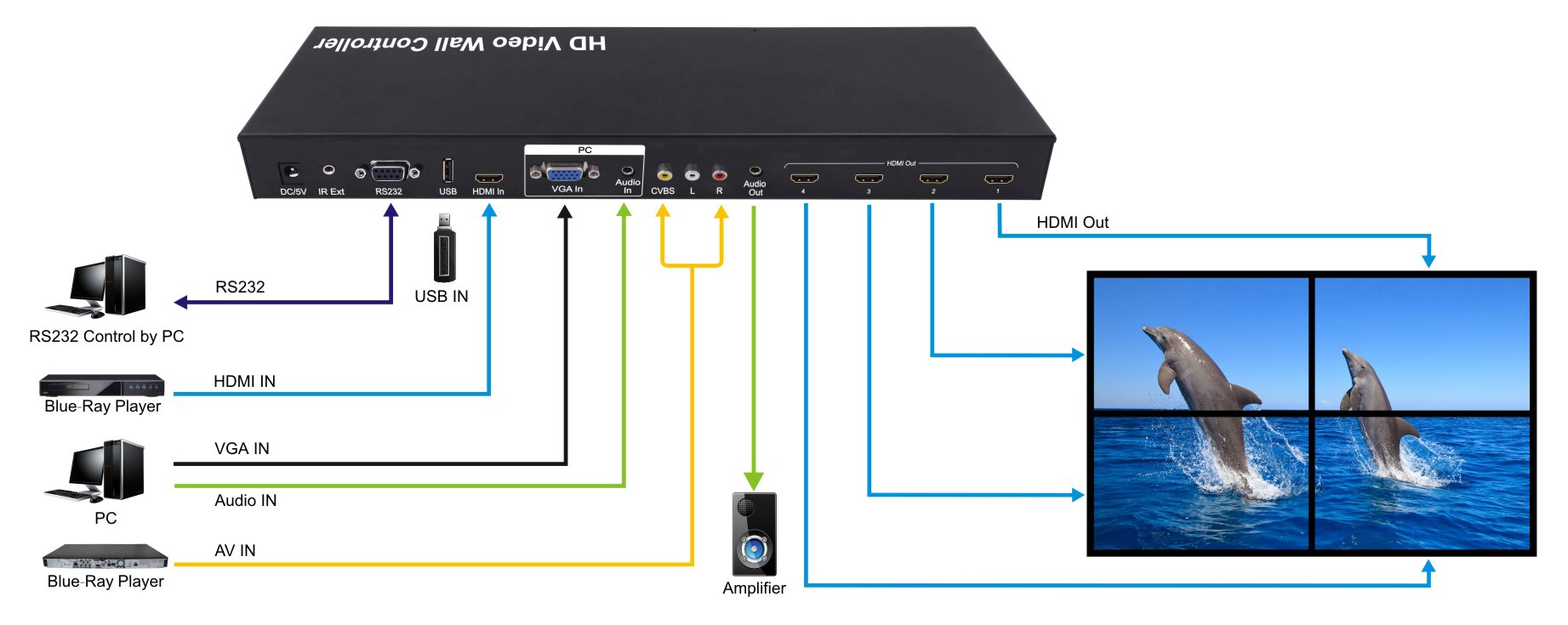

2×2 Video Wall

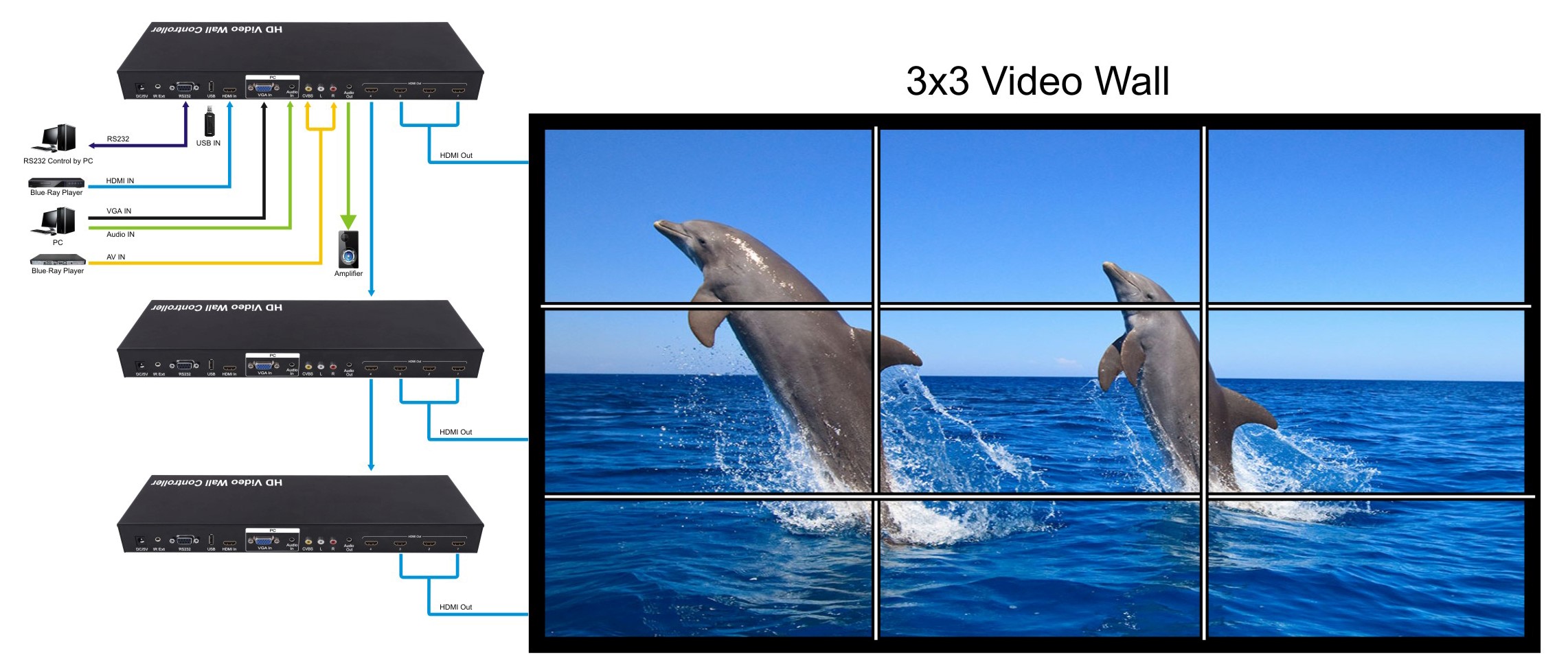

Multi-Level Cascading (Max 10×10 Video Wall)
NOTE: PLEASE NOTE THIS CONTROLLER IS NOT COMPATIBLE WITHTHE SAMSUNG 4K60HZ 18GBPS TV, ALTHOUGH THE CONTROLLER IS ONLY 1080P OUTPUT. THE HDMI INPUTS OF THE SAMSUNG 4K TV DRAWMORE CURRENT THAN THE CONTROLLER OUTPUTS DESIGNED. SAMSUNG 4K TV WILL HAVE A BLACK SCREEN INTERMITTENTLY.
